RV Dome Security Camera
RV Dome Security Camera
Our RV Dome Security Camera is the ideal and recommended camera if mounting to the outside surface of your motor home or camper. With its compact design and versatile installation options, you can easily monitor your RV and its surroundings from anywhere, giving you peace of mind and added security on all your travels. Get a reliable and efficient protection with this top-performing Wi/Fi dome camera."
Overview
The RV Dome camera is a PoE dome camera designed for use in indoor and outdoor environments. The camera comes with a dark gray cover that can be optionally attached to change the appearance of the camera for aesthetic purposes. In addition to cloud clip storage, the RV DOme Camera comes with 24/7 recording to an included onboard 512MB microSD card for 20 days of recording at the highest resolution.
Features
- Power over Ethernet provided by the included PoE to WiFi Bridge.
- Connects to your WiFi
- IR night vision
- Onboard Recording with Smart View
- Video Analytics with Object Detection
- Receive video alerts and view live video on your phone or smart watch.
- 1080p WDR and HDR video
- IP66-rated waterproof & dust-tight
Included accessories
- Camera
- Dark Gray Cover
- Mounting hardware
- Torx wrench
- Water-resistant cap
- Cloth
Specifications
Supported resolutions | 1920x1080, 1280x720, 640x360 |
---|---|
Local recording | Select microSD cards* |
Image sensor | 1/2.7" Progressive Scan CMOS |
Lens and field of view | 2.8 mm, F1.6, 111° |
Angle adjustment | Pan: 0° to 350°; Tilt: 0° to 55°; Rotation: 0° to 180° |
Low-light sensitivity | 0 lux with IR |
IR range | Up to ~95 feet (30 meters) |
Image adjustments | Flip, brightness, contrast, saturation, sharpness, exposure |
Ethernet connection | 10/100 Mbps RJ-45 |
Operating temperature | -22°F to 122°F (-30°C to 50°C) |
Operating humidity | 20% - 100% non-condensing RH |
Power | 12 VDC ± 10% or PoE (802.3af), 9.5 W |
Dimensions | (W x H) 4.1 x 3.1” (103.5 x 78 mm) |
Weight | 376.5 g |
Ingress protection | IP66 |
Impact protection | IK9 |
Planned compliance | FCC, IC, C-Tick, CE Class B, UL |

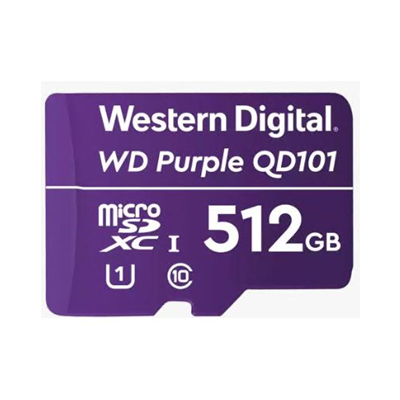

*Note: Alarm.com recommends using SanDisk High Endurance, Micron Industrial, or WD Purple microSD cards. These cards have been vetted by Alarm.com and are designed for long-term surveillance usage.
Onboard Recording with Smart View
Record encrypted, 24/7 HD footage locally on the camera with a microSD card. View live and recorded video on the Alarm.com website and mobile app from anywhere, using the SmartView video timeline to search for important events such as person detected or door accessed, and jump straight to the corresponding footage.
Recording Quality | 64GB | 128GB | 256GB | 512GB |
---|---|---|---|---|
640x480 10FPS | 15 Days | 30 Days | 60 Days | 120 Days |
1280x720 10FPS | 7 Days | 14 Days | 30 Days | 60 Days |
1920x1080 15FPS | 4 Days | 7 Days | 14 Days | 30 Days |
1920x1080 30FPS | 2 Days | 5 Days | 10 Days | 20 Days |
PoE to WiF Bridge
The included ADC-W110 makes it easy to install any Alarm.com Power over Ethernet (PoE) camera, eliminating the need to run cable wiring throughout a home or business.
Simply plug the device into a wall outlet to provide a PoE camera with both electrical power and secure, reliable Wi-Fi connectivity.
The ADC-W110 integrates with Alarm.com, providing easy post-installation troubleshooting and enhanced security.
Features
- Simple plug-in installation
- Secure, reliable Wi-Fi connectivity
- Eliminate the need for wires
Click here for the PoE to WiFi Bridge Quick Start Guide
Requirements
Power | Standard electrical outlet |
---|---|
Network | Broadband Internet connection with router |
Setup | Access Point (AP) mode or Wi-Fi Protect Setup (WPS) mode |
Specifications
Wi-Fi Security | WEP, WPA, WPA2 Wi-Fi |
---|---|
Ethernet Interface | 10 / 100 Mbps RJ-45 IEEE 802.3 af PoE |
Wireless | IEEE 802.11 b / g / n 2.4 GHz |
Dimensions (W x L x H) | 2.4 x 2.2 x 3.6" |
Operating Temperature | 32°F - 113°F (0°C - 45°C) |
Operating Humidity | < 90% |
Operating Voltage | Min: 100 V, Max: 120 V |
Installation Process
The installation process is pretty simple. You're going to drill 4 holes. 3 small one's to mount the camera and 1 large one to run the cable through. This part is important and it's not in the installation manual. The 3 small holes will need to be 7/64" if you are mounting to vinyl, wood, metal, etc. If you need to use the provided plastic screw anchors for drywall, concrete, brick etc., drill a 13/64" hole. Use the provided template to mark the holes. The center hole for the cable will need to be at least 1". It can be bigger if needed. Use a hole saw for a cleaner cut. The camera base will cover the hole. Fish the cable through the hole and use the 3 provided 1/8" screw to mount the camera to the surface. Then connect your Ethernet Cable (not provided. Order below) to the camera cable and run it to the PoE to WiFi Bridge which will be plugged into a power outlet. The Bridge provides power to camera and connects to Smart Gateway's WiFi signal providing connectivity. The Smart Gateway will connect to your Internet Cube or modem via the provided Ethernet cable. This will create a separate and secure WiFi signal just for the cameras.
Click here for the camera install guide.
You may also be interested in these products to help with your install.
Ethernet Cable
You'll need an Ethernet cable long enough to reach from the camera to where ever you want to plug the PoE to WiFi Bridge into a power outlet.
Figure out what length or lengths you'll need then click here to get them on the way.
