Smart Thermostat HD- Color Touchscreen
Smart Thermostat HD- Color Touchscreen
Couldn't load pickup availability
The Smart Thermostat HD is the perfect addition to your RV. With its easy-to-use color touchscreen display, you can easily adjust the temperature for maximum comfort while on the road. Save money and energy by taking control of your RV's heating and cooling with this advanced thermostat.
The Smart Thermostat HD offers a sleek, color touchscreen display for an engaging customer experience that delivers the next-level of comfort and control.
With mechanical wire detection, an easy setup wizard, and local configuration, the Smart Thermostat HD makes installation a breeze.
The Smart Thermostat HD can also monitor the health of the heating and cooling system, deliver monthly performance reports, and even alert you to potential HVAC issues right on its display.
In the box
- ADC-T40K-HD thermostat
- ADC-T40K-HD touchscreen display
- Installation guide
- Drywall anchors and screws (x2)
- Trim plate
Features
- Touchscreen display
- Easy to use setup wizard
- Z-Wave SmartStart and S2 compatible
- Full integration with the Alarm.com
platform – Scenes, energy-saving
schedules, and geo-fences - Optional local scheduling -- install in a
vacant home prior to account creation. - Humidity control
- Vent control

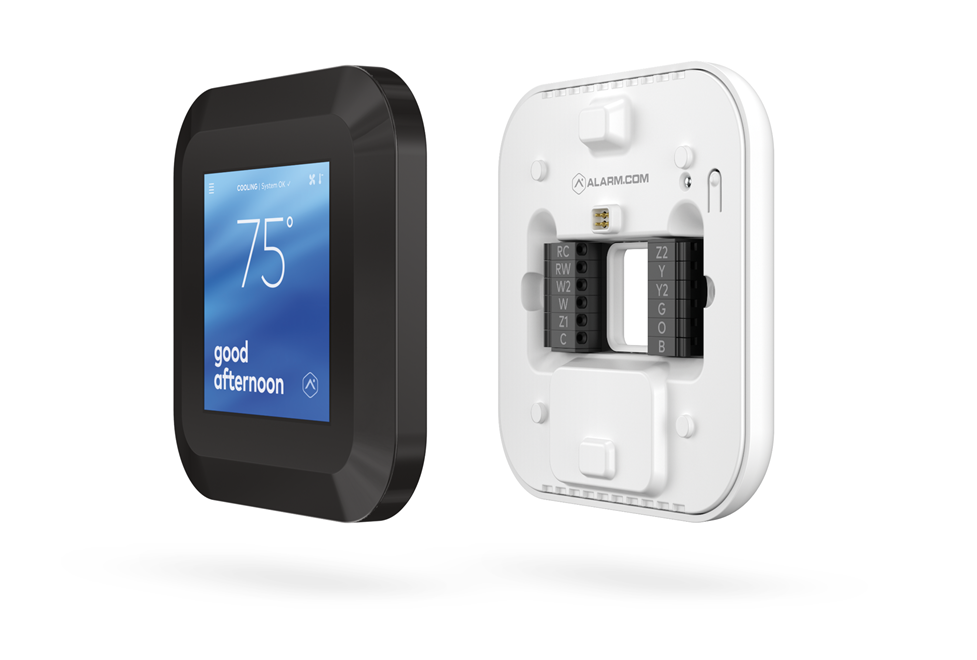

Terminal guide
| Terminal | Description |
|---|---|
| RC | Cooling power |
| RH | Heating power |
| W2 | Heat/aux stage 2 |
| W | Heat/aux stage 1 |
| C | Common wire from transformer |
| Z1 | Configurable: W3, humidifier, dehumidifier, vent |
| Z2 | Configurable: W3, humidifier, dehumidifier, vent |
| Y | Cool/pump stage 1 |
| Y2 | Cool/pump stage 2 |
| G | Fan |
| O | Heat pump reversing valve (Energized in COOL mode) |
| B | Heat pump reversing valve (Energized in HEAT mode) |
Specifications
| Power | 24 VAC - C wire required |
|---|---|
| Dimensions (H x W x D) | 4.7 x 4.7 x 1.07’’ (12 x 12 x 2.72 cm) |
| Operating temperature | 41°F to 95°F (5°C to 35°C) |
| Communication | Z-Wave SmartStart, Z-Wave S2 Authenticated/Unauthenticated |
Compatible systems
| Near universal 24 V compatibility | Yes |
|---|---|
| Humidifier | Yes |
| Dehumidifier | Yes |
| Forced Air | Yes |
| Heat Pump | Yes – Compatible with both O and B systems |
| Heat | Up to 3 stages |
| Cool | Up to 2 stages |
| Dual Fuel | Yes |
| Ventilation control | HRV, ERV, External Air Baffle |
